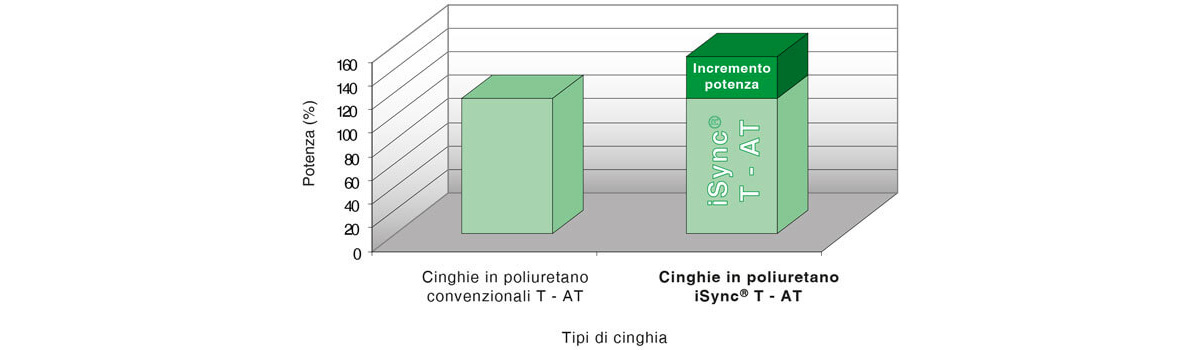

The ELATECH® iSync® synchronous belt is an innovative high-performance belt for power transmission. It is made of polyurethane resin matrix and tension cables of steel or aramid fibers. The tension cables have a high elastic modulus, enabling them to maintain good dimensional stability under load. The production process is based on a unique and extremely precise technology, combined with the use of high-quality materials, making the ELATECH® iSync® synchronous belt extremely precise. Moreover, the conveying capacity of the ELATECH® iSync® synchronous belt is 30% higher than that of the traditional T and A type belts, so the belt is durable and the transmission is more compact.

Belt characteristics

 ◆ Pitch: T2.5 | T5 | T10 – TV10 (for vacuum applications) | AT 5 - 10 | XL - L
 ◆ On-demand provision of MXL - H - HTD5M and double-sided tooth configuration DT5 - DT10
 ◆ Operating temperature range: -10/+80 °C
 ◆ Tensioning cable: Made of high tensile strength steel material (as required: Kevlar® | stainless steel | HFE - high flexibility)


 Advantages

◆High-performance power transmission
 ◆Maintenance-free
 ◆Extremely high length stability
 ◆Clean power transmission, no dust emission
 ◆High chemical resistance, especially resistant to oil, grease and gasoline
 ◆Standard pulleys made of aluminum, cast iron or steel with hard hubs are available, suitable for installing SER-SIT® cones or in accordance with customer specifications.
 All types of aluminum rods are available in stock.
